Description

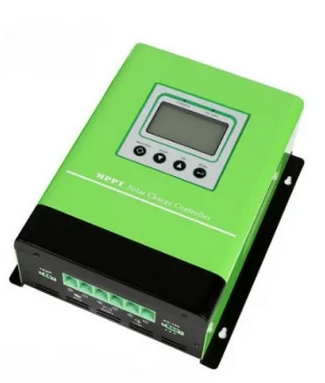

YIELD ENERGY MPPT Technology
1.Max input voltage of solar panel:150V
2.Regulatory mechanism of temperature compensation( Auto regulate the charging voltage according to the temperature sensors )
3.Built-in solar data monitoring interface(RS485)
4.Solar charging voltage can be regulated
5.LCD Display with backlight
6.Good heat dissipation effect with less noise
7.Cable specification:>=10 square millimetres(Copper cable)
8.Reverse protection,short circuit protection
9.Auto identify system voltage of 12V/24V/48V
10.Hanging style design makes it convenient to install
Working Mode
There are several common working mode of MPPT solar controller:
1. Button Mode (Manual switching load)
2. Light Controlled Mode (Load switch is controlled by solar panels
photosensitive control and timing control)
3. Light control turn on delay off mode.
4. Circulation model (With Clock Fuction)
5.MPPT charging mode,Maximum power point tracking automatically
Protection
*PV array short circuit
*over discharge Protection
*Discharge voltage protection
*IP21 Mechanical protection
*Load overload
*the input low voltage protection
*PV Lightning protection
*Battery reverse polarity
*The overcharger protection voltage
